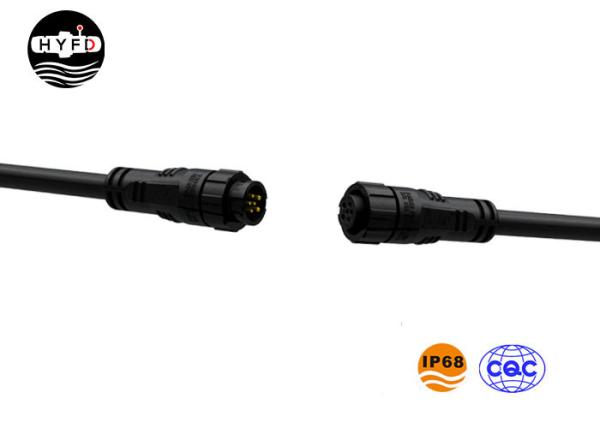

Waterproof Circular Connector M16 Connector IP68 Overmold Circular Power Connector
Introduction
● Simple on-site assembling.
● Snap joint type waterproof connector, easy to use.
● Mutiple plugging and unplugging cycles.
● Accomodates PV cable with deferent insulation diamaters.
Product feature and application
● Used for LED Strips, LED Wall-washers, LED Underground Light, LED Rope Light, LED Belt Light, Curtain Light, Twinkle Light and so on.
● Protect from dust and water during immersion, resistant to many oils and chemicals.
Parameter
| Item name | M16 circular waterproof audio connector | Connecting code | Soldering assembly |
| Current rating | 2A-10A | Operating temperature | -40℃--105℃ |
| Operating voltage | 250V | Wire OD | ≤7.6mm |
| Mechanical life | 1500 mating cycles | Contact pin material | Gold plated brass |
| Contact resistance | ≤5mΩ | Shell material | Nylon(PA66) |
| Contacts numbers | 2pin, 3pin, 4pin, 5pin, 6pin, 8pin, 2+3pin, 2+4pin | Waterproof level | IP68 |
| Cable specification | 0.2mm2~1.0mm2 | Certification | CQC, CE, IP68, ROHS |
WHY CHOOSE US?
Shenzhen HuaYi-FaDa Technology (also known as Shenzhen 2IN1 Technology) is a professional manufacturer with over 12 years FACTORY experience for waterproof connectors.
100% Guarantee Qualtiy
•OEM supplier for Anphenol, Philips (Signify), OSRAM for over 7 Years
•100% Tested (Not Just Batch Tested)
•Manufactured Under Strict Control
•Quality Guarantee: 3 Years
Professional Certification
•ISO 9001:2008
•TUV Certification
•RoHS Compliance
•UL Certification
FAQ
Q1: How long is your delivery time?
A: Samples 1-3 days; mass products 5-10 business days.
Q2: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge but the freight costs will be paid by you.
Q3: What is your terms of payment?
A: T/T in advance for small quantity; quantity over 5000 sets, 30% prepayment and rest before shipment.
Q4: Is it OK to print my Logo on the product?
A: Yes, we support OEM/ODM service.
